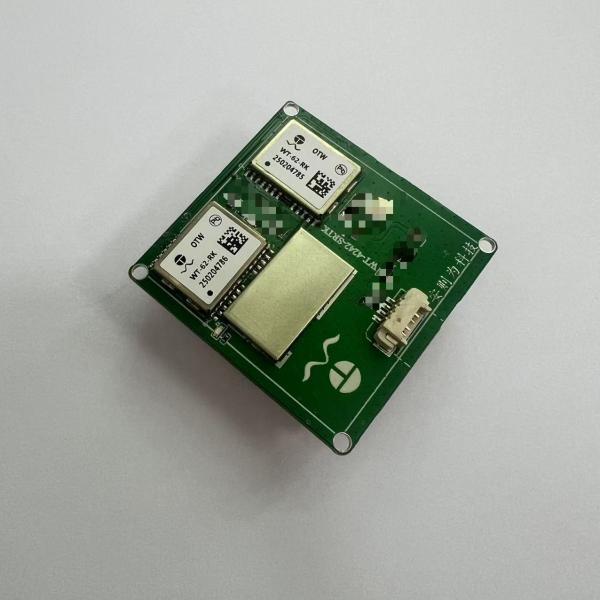

Integrated Dual RTK Module Equipment, Serving As Both Mobile Station and Base Station Data Output for Static Applications

Place of Origin : China

Brand Name : OTW

Model Number : WT-4242-SRTK

Type : GNSS Module

Country of Origin : Shenzhen Guangdong, China

Brand : OTW

Chipset : XX

Application : Positioning, surveying and mapping, etc

Dimensions : 42mm*42mm*11mm

Positioning Accuracy : 1cm

Operating mode : GPS+GLONASS+GALILEO+ BDS

Connector : 4PIN 1.25mm JST

Baud rate : 4800bps-921600bps,Default115200bps

NMEA messages : RMC,VTG,GGA,GSA,GSV,GLL

Update frequency : 0.25Hz-10Hz(default 1Hz)

Voltage : 3.3V to 5V

Power consumption : 103mW @1.8V

Size : 42mm*42mm*11mm

MOQ : 1

Contact Now

Integrated Dual RTK Module Equipment, Serving As Both Mobile Station and Base Station Data Output for Static Applications
Application：
 Location of base stations, power and communications  Area measurement and distance measurement surveying and mapping products  Static test, street lamp, signal receiving station
Integrated Dual RTK Module Equipment, Serving As Both Mobile Station and Base Station Data Output for Static Applications
Features：
● Multi-system, can synchronously receive GPS/BDS/GLONASS/GALILEO four system dual frequency ● RTK algorithm ● Ultra-high precision, can achieve centimeter-level positioning ● Low cost, low power consumption ● Fast positioning
Integrated Dual RTK Module Equipment, Serving As Both Mobile Station and Base Station Data Output for Static Applications
Module performance
Model
WT-4242-SRTK
Receiver type
BDS:B1I/B1C & B2a
GPS/QZSS:L1C/A & L5
GLONASS:L1
Galileo:E1,E5a
Arithmetic
Integration RTK
Agreement
NMEA-0183 compliant protocol or custom protocol
Available baud rate
4800bps~921600bps(default 115200bps)
Channel
128
Sensitivity
Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start
Average 28seconds
Hot start
Average 1 seconds
Accuracy
Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50
18Max Height
18000 m
Max Speed
515 m/s
Max Acceleration
≦ 4G
Regeneration frequency
0.25 Hz -10 Hz
Positioning mode
A-GNSS，Double frequency RTK
Port
Port
4PIN 1.25MM JST
Physical property
Type
24PIN LCC package
Size
42mm*42mm*11mm (+/- 0.5mm)
Power supply
Voltage
3.3V~5V
Power Consume
Running mode: 103mW@1.8V, Standby mode: < 20μW
Oerating Environment
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
Integrated Dual RTK Module Equipment, Serving As Both Mobile Station and Base Station Data Output for Static Applications
Company Profile
Shenzhen Anzewei Technology Co., Ltd. is a scientific and technological company integrating the R & D, production, sales and service of wireless positioning communication products, semi-finished products, finished products and supporting terminals. it has many international well-known enterprises in-depth cooperation resources and a number of elite and senior R & D and design teams.
We always take customer demand as the original strategy, providing wireless and portable high-end consumer electronics solutions, specializing in navigation, positioning, tracking, timing, communications, wireless connections and other professional products, semi-finished products and products, mainly centimeter-level positioning terminals, wearable children's smartwatches, pet track.
Integrated Dual RTK Module Equipment, Serving As Both Mobile Station and Base Station Data Output for Static Applications
Logistics & Payment
Integrated Dual RTK Module Equipment, Serving As Both Mobile Station and Base Station Data Output for Static Applications
Integrated Dual RTK Module Equipment, Serving As Both Mobile Station and Base Station Data Output for Static Applications
Integrated Dual RTK Module Equipment, Serving As Both Mobile Station and Base Station Data Output for Static Applications
FAQ
Q1: Are you a manufacturer? Where is your factory? A1: Yes, we are a manufacturer. Our factory is located in Shenzhen, China. Welcome to our factory. Q2: If i place an order how long will it take to delivery it？ A2: IT usually takes about only 7-10days on receipt of payment,depends on the quantity ordered and the stock status. Q3: Are the prices on the list final? A3: No, the price is negotiable. It depends on the quantity of your order. Q4: When can I get the price? A4: Usually we quote within 24 hours of receiving an inquiry. If you urgently need to get a price, please call us so that we can let me quote you as soon as possible. Q5: Can I ask for a sample before placing an order? A5: Yes, we are welcome to order samples to test and check the quality. Mixed samples are acceptable. Q6: Can it be customized? A6: Yes. We support custom requirements. Q7: How can you make our business build a long term good relationship? A7: 1. We maintain good quality and competitive price to ensure that our customers benefit; 2. We respect every customer as our friend and sincerely conduct business and make friends with you, wherever you come. If you would like to know more about our company, please contact us immediately.
